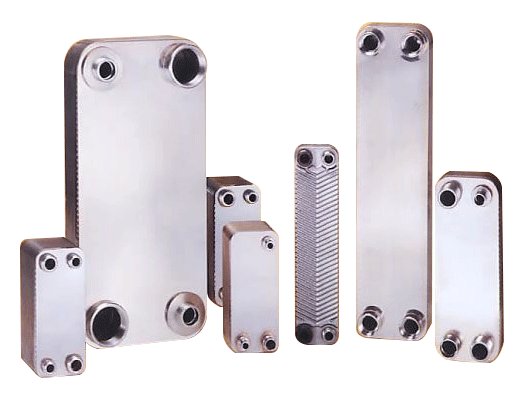

Nickel brazing plate heat exchanger product features
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
Light weight
Food grade
* Only 20-30% of shell and tube heat exchangers
Less water consumption
* Brazed plate heat exchanger heat transfer efficiency, so that it is only in the same cooling conditions equivalent to shell and tube heat exchanger 1/3 of the cooling water flow.
Durable
* Can withstand high temperatures (200 ° C)
* Eliminates corrosion problems
* Removed the gasket
Low coefficient of dirt
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.

Nickel brazing
Plate material	AISI316L
Interface material	AISI304
Brazing material	nickel
Maximum design temperature	200°C
Minimum design temperature	-160°C
Maximum design pressure	15/20 bar

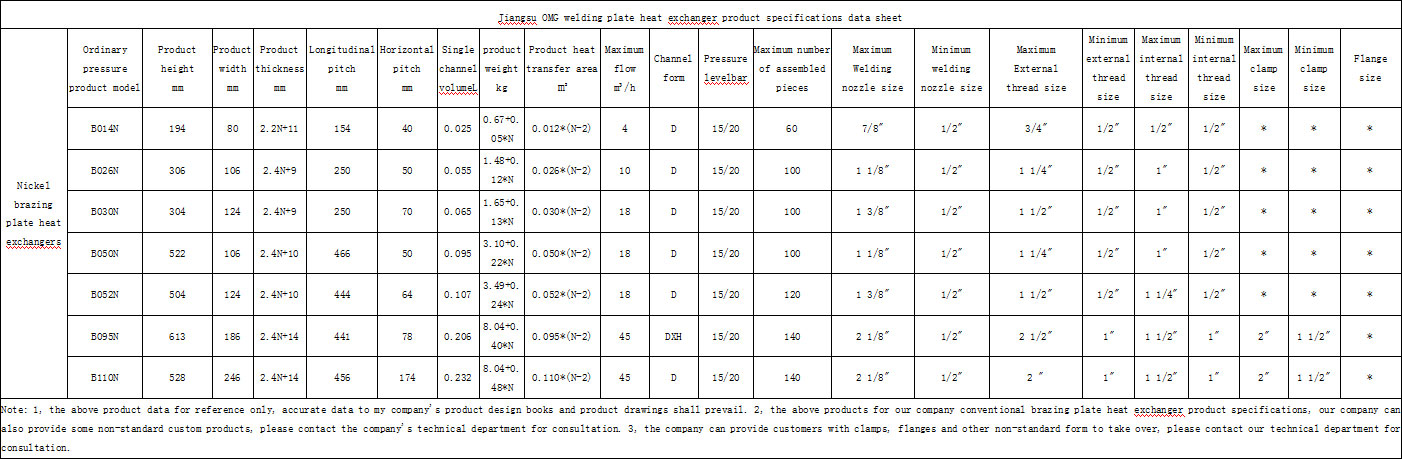

Jiangsu OMG nickel brazing plate heat exchanger product specifications data sheet

Click for larger image
