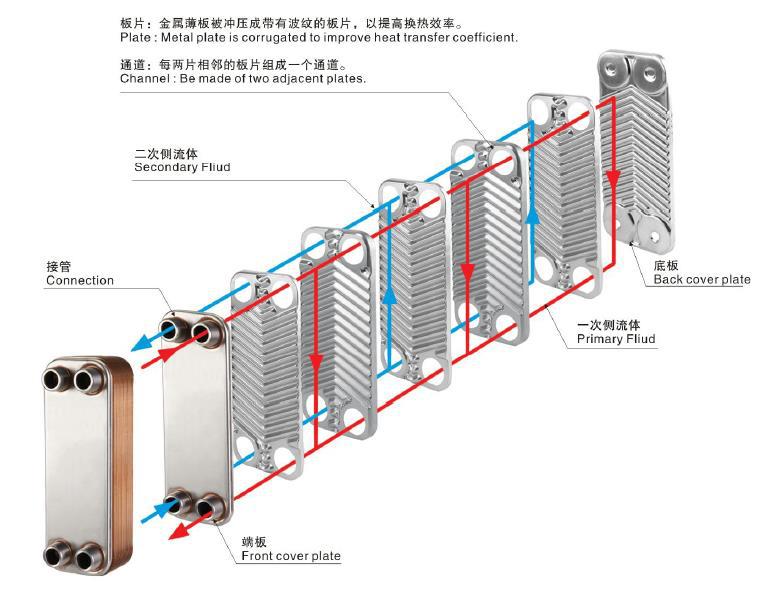

Copper brazing plate heat exchanger product features
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
Light weight
* Only 20-30% of shell and tube heat exchangers
Less water consumption
* Brazed plate heat exchanger heat transfer efficiency, so that it is only in the same cooling conditions equivalent to shell and tube heat exchanger 1/3 of the cooling water flow.
Durable
* Can withstand high temperature (200 ° C) and high pressure (30bar)
* Eliminates corrosion problems
* Removed the gasket
Low coefficient of dirt
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.

Copper brazing
Plate material	AISI304/316L
Interface material	AISI304
Brazing material	copper
Maximum design temperature	200°C
Minimum design temperature	-160°C
Maximum design pressure	30/45 bar

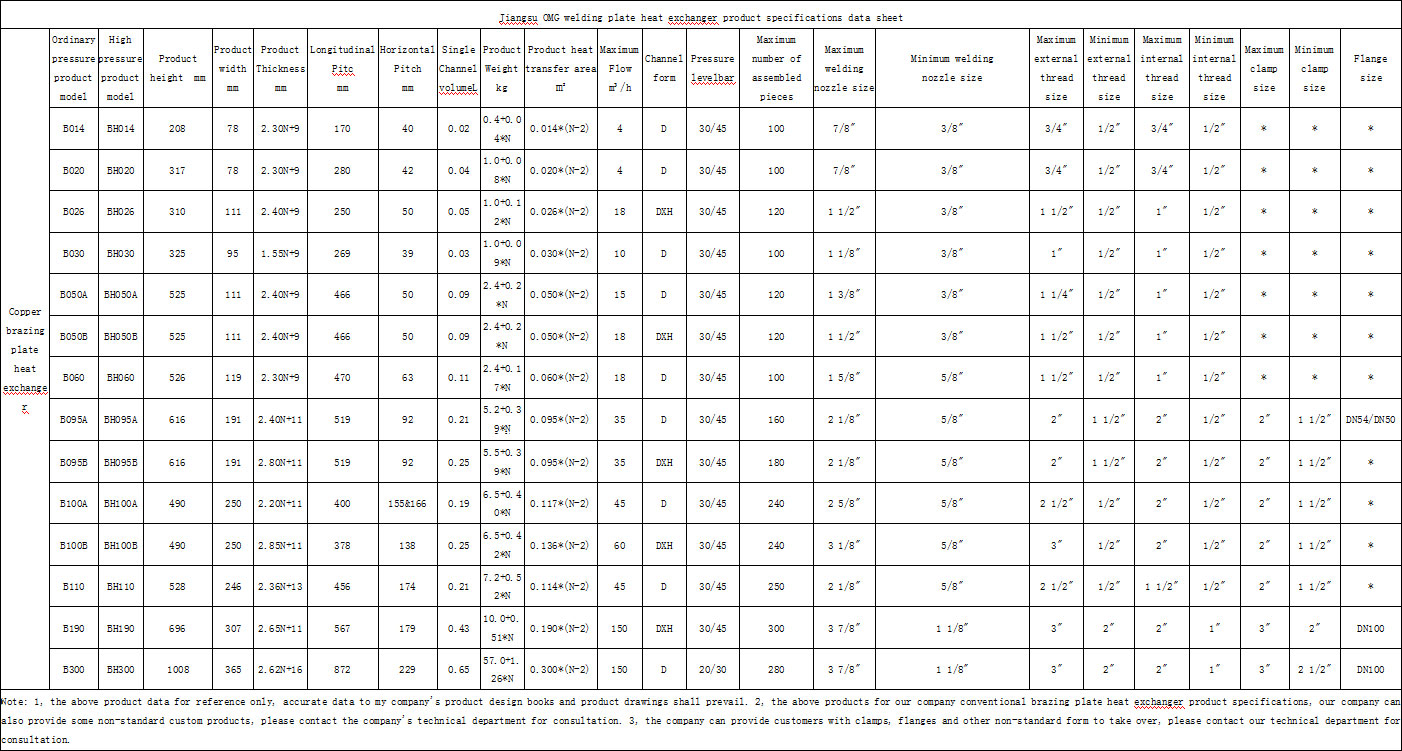

Jiangsu OMG welding plate heat exchanger product specifications data sheet
